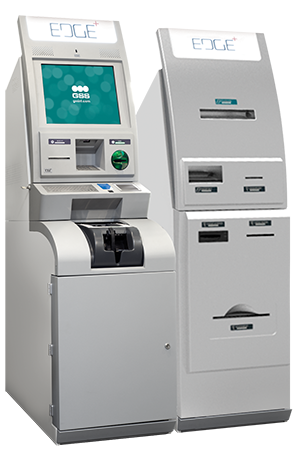

ATVR+360 Overview

EDGE Banking VTM is an innovating product that leverages ease and speed to access banking services anywhere and anytime….
Actually GSS provides this solution that is based on electronic
banking as competitive vantage for banks oriented on customer
invitation and banks added values.

Key Features

• Supporting ISO8583, NDC or customer requested protocols to connect to host
• Supporting WOSA/XFS standards
• Small Footprint (96x91)
• Standard safe box
• Cash acceptance in 8 different rolls
• Multi-currency operation
• Link to bank security systems
• Motorized card reader compatible with magnetic and smart cards
• Active anti skimming
• Equipped with fingerprint scanner
• High quality Microphone and speakers
• HD camera
• Stainless steel keyboard
• Industrial card printer
• Pin pad (PCI3.0 certified )
• Equipped with 17`` touch monitor
• Laser / thermal A4 printer
• Barcode reader (1D,2D)
• Passbook printer
• Equipped with cheque scanner and cheque printer
• ID card scanner/reader
• RFID/NFC
• Digital signature pad
• Customization ability of cash acceptor to collect fresh printed or street quality notes
• Central monitoring to checking all modules status
• Equipped with industrial PC
• Switching to supervisor mode by opening doors

Specifications

Industrial PC
(Advantech)

 - Motherboard : Intel
- CPU: Core I 5
- RAM: 4GB
- Hard Disk : 500G
- 10 RS-232 Ports
- 10 USB Ports
- 2 LAN Ports
- DVD Rom (R/W)
Touch Screen Monitor - Size: 17"

- Privacy Filter

Advertisement Monitor(Optional)

 - Size: 17"
Fingerprint Scanner - Sensor: Optical
- False Accept Rate (FAR): 0.001%
- False Reject Rate (FRR): 0.1%
- Reading speed: 1 second
Receipt printer - Paper width 80mm
- Fonts: any language available
- Printing Method: Thermal fixed head
- Resolution: 203 dpi
- Printing Speed (mm/sec): 150mm/sec

Industrial Card Printer
(Primacy)		 - Double sided print module, edge-to-edge printing
- 300 DPI print head
- 2 million Colors
- Printing Speed : Color= 210 Cards per hour, Monochrome 850 Cards per hour
- Feeder Capacity :UP to 200 Cards
Statement Printer A4 - Laser Printer
- Resolution : 4800*600 DPI
- Printing Speed: 29 Pages per minute
- Feeder Capacity: 250
Signature Pad - Type 4“ (10,5 cm), monochrome, with optional backlight
- Resolution 320 x 160 pixel absolute 86 x 86 ppi
- Pixel size 0,275 mm
- Visible area 92 x 47 mm
Embedded Cheque Printer - Sensors : Paper Location Detection, Cover Location Detection, Double Document Detection,
Ribbon Detection, Missing Corner Detection
- Print Method : Thermal transfer
- Ribbon Width : 60mm-110mm
- Communication : RS232 serial port

Embedded Cheque Scanner

 - Double Feed Detection (Ultrasonic)
- Color , UV , MICR , 2D Barcode , OCR
- Endorsement (Inkjet)
- Feeding Speed : 300 mm/s
- Scan Resolution : 200*200DPI , 300*300 DPI
Passbook Printer - 24 Pin
- Resolution 360*360 DPI
- Optional Devices: Magnetic strip reader and writer
tractor feeder for continuous forms (available for PR90-T)
MICR reader
Scanner
- printing capability: Barcode printing
- printing Mode : Bidirectional
Card Reader - IC Contact: ISO/IEC 7816- EMV ver 4.0
- Magnetic Stripe: ISO/IEC 7810,7811 series7813
- Motorized
PINPAD (EPP) - PCI 3.0 certified EPP
- Waterproof, dust-proof and vandal resistant
- 16 keys ,stainless steel, brail keyboard
metal keyboard

- keys: 64 keys
- vandal proof
- stainless steel
- IP65




Barcode Reader - Scan rate : 300 scans per second - Interface : RS232 ,USB - Illumination : 617nm visible red LED Symbolizes : Linear: UPC/EAN/JAN, GS1 Data Bar, Code 39, Code 128, Code 32, Code 93, Code bar/NW7,Interleaved 2 of 5,Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Tropic,; 2D Stacked: PDF417, MicroPDF417,GS1Composite; 2D Matrix: Aztec Code, Data Matrix, QR Code, Micro QR Code, OCR Option: OCR-A, OCR-B, E13B (MICR)
RFID - With 2 SAM module
Passport / ID Card Scanner Readable documents e-Passport (Optional), Passport, ID Cards
- MRZ reading
- RFID reading
- 1D & 2D Barcode reading (Optional)
Imaging - Window size: 127mm*96mm
- Sensor: CMOS, 3 Megapixels (2048*1536)
- Resolution: 400 dpi
Trigger - Auto-trigger
Environmental - Operating temperature -10° to 50° operating °-20° to 50° storage
- Operating humidity 20% to 95% (non-condensing)
External interface USB 2.0

- External interface: USB 2.0
Cash Recycler Safe: 12 mm (UL 291)
Connection: Serial port RS232 or USB 1.0 port or ethernet
Banknotes Detector: Cashray CR90 for all currencies: 3D, visible light, infrared
ultraviolet, magnetic, multi denomination storage
Deposit and withdrawal speed: 7 banknotes per second
Electrical Dharacteristics: Voltage 90 – 240 V AC
Frequency 50 – 60 Hz
Power input 600 W
Input Tray Capacity: 200 Banknotes
Reject Box Capacity:

8
Deposit Capacity: Up to 5600 banknotes
Size of theE Banknotes Handled: Length from 100 mm to 190 mm width from 60 mm to 82 mm
