Key Features

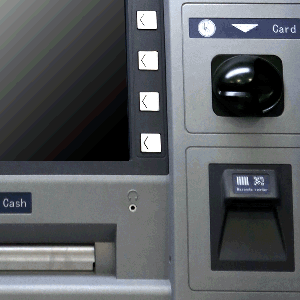

Card Handling Module
• Motorized hybrid card reader
• EMV 2000 Certified
• Auto-withdraw abandoned card,
Auto-spit card when power off
• Standard IC card read and write,
• Contactless IC reading module (optional)

Cash Dispensing:
• Pile cash out dispensing module
• Standard config. Is 2 cassettes, Maximum to 4 cassettes
• 3000 notes in each cassette
• Each transaction is up to 100 notes
• Cash-out speed is 7 Pcs/sec
• Separate PR cassette with 300 notes
• Cassette with lock

Technical Information

System Control:
• Industrial Computer.
• Maximum RAM is up to 2G, Maximum Display RAM is up to 64M
• Double display with VGA,LVDS port
• 10*RS232 port, 6 *USB2.0 port,3* PCI socket

Display Module:
• Main display module 15”TFT LCD VGA (800X600) with Protection glass
• Operation Panel 8.4”TFT LCD LVDS (800X600)

Display Mudule Option:
• Touch screen
• Privacy visor screen

Keyboard:
• Double 4*4 stainless steel function keys

Keyboard Option:
• EDM module
• Braille Keyboard

Security system:
• System control Industrial computer with lock
• Electronic cabinet with lock
• Safe with mechanism and encryption lock suit for UL291
• Inducing hint when the door arrives at the right place
• Shock sensors

Security System Options:
• bank note camera shooting
• video monitor module
• UPS intellective power management module

System

Printing Module
• Receipt printing module(thermal printing module)
RS232 port or USB port with 180mm paper roll
• Journal printing module
RS232 port with 180mm paper roll
• Pinpad Keyboard:

Operation System:
• Windows XP

Application Software:
• ABWOA Software platform
• ISO 8583
• NDC
• DDC
• Web C
• Support CEN/XFS 2.0/3.0

Power Supply:
• 220V-15%~220V+10% 50Hz

Environmental:
• Temperature 0°C~40°C
• Relative humidity 20%-95%

Dimention:
• 1304mm(width)X 1815mm(Height)X 690mm(Depth)

Weight:
• 630Kg
